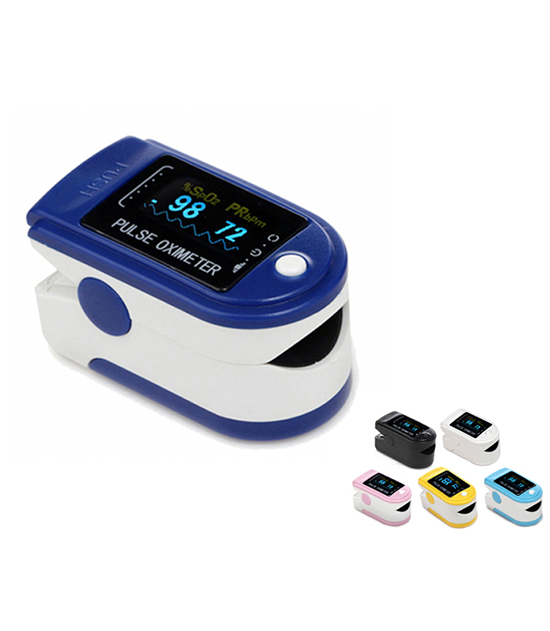

Finger Oximeter

OLED display

6-direction display adjustable

8 seconds fast measurement

Automatic power off when no signal

Low voltage indicator

Pulse waveform display

SKU : TB-04

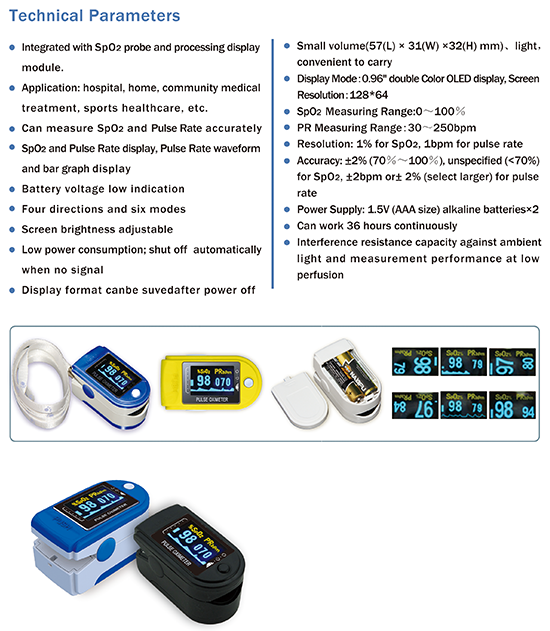

Integrated with SpO2 probe and processing display module.
Application: hospital, home, community medical treatment, sports healthcare, etc...
Can measure SpO2 and pulse Rate waveform and bar graph display.
Battery voltage low indication.
Four directions and six modes.
Screen brightness adjustable.
Low power consumption; shut off automatically when no signal.
Display format canbe suvedafter power off.
Small volume(57(L) x 31(W) x 32(H) mm) light, convenient to carry.
Display Mode: 0.96" double Color OLED display, Screen Resolution: 128*64.
SpO2 Measuring Range:0~100%.
PR Measuring Range: 30~250bpm.
Resolution: 1% for SpO2, 1bpm for pulse rate.
Power Supply: 1.5V (AAA size) alkaline batteries x2.
Can work 36 hours continuously.
interference resistance capacity against ambient light and measurement performance at low perfusion .
